SPECIFICATIONS(STC)
|
|

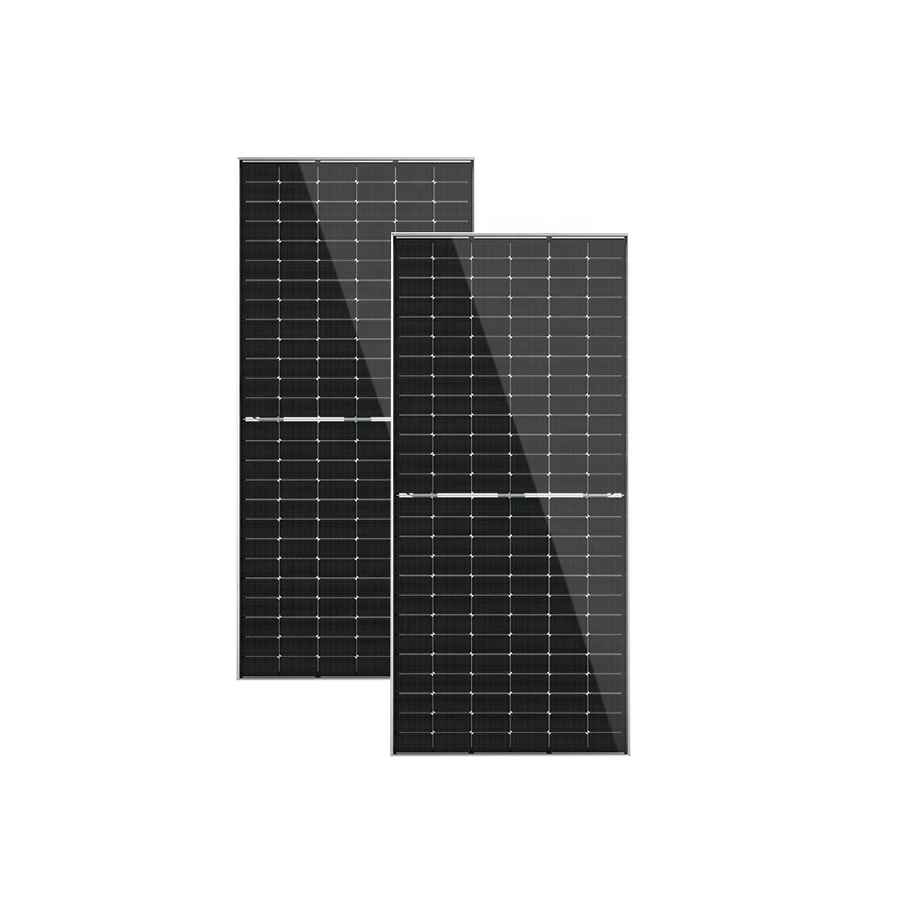

Module Type
|
JKM605-625N-78HL4-BDV
|
|
Maximum Power (Pmax)
|
605Wp
|
610Wp
|
615Wp
|
620Wp
|
625Wp
|
|
Maximum Power Voltage (Vmp)
|
45.42V
|
45.60V
|
45.77V
|
45.93V
|
46.10V
|
|
Maximum Power Current (Imp)
|
13.32A
|
13.38A
|
13.44A
|
13.50A
|
13.56A
|
|
Open-circuit Voltage (Voc)
|
55.17V
|
55.31V
|
55.44V
|
55.58V
|
55.72V
|
|
Short-circuit Current (Isc)
|
13.95A
|
14.03A
|
14.11A
|
14.19A
|
14.27A
|
|
Module Efficiency STC (%)
|
21.64%
|
21.82%
|
22.00%
|
22.18%
|
22.36%
|
|
Operating Temperature(ºC)
|
-40ºC~+85ºC
|
|
Maximum system voltage
|
1500VDC (IEC)
|
|
Maximum series fuse rating
|
30A
|
|
Power tolerance
|
0~+3%
|
|
Temperature coefficients of Pmax
|
-0.30%/ºC
|
|
Temperature coefficients of Voc
|
-0.25%/ºC
|
|
Temperature coefficients of Isc
|
0.046%/ºC
|
|
Nominal operating cell temperature (NOCT)
|
45±2ºC
|
|
Refer. Bifacial Factor
|
80±5%
|
