Electrical Data
|
|
Model
|

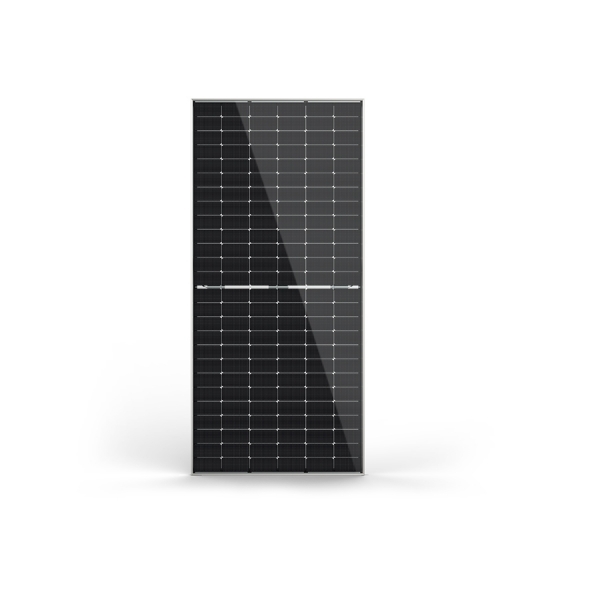

JKM595N-78HL4-V
|
JKM600N-78HL4-V
|
JKM605N-78HL4-V
|
JKM610N-78HL4-V
|
JKM615N-78HL4-V
|
|
Peak Power Watt- Pmax (W)
|
595
|
600
|
605
|
610
|
615
|
|
Maximum Power Voltage- Vmpp (V)
|
45.29
|
45.39
|
45.49
|
45.59
|
45.69
|
|
Maximum Power Current- Impp (A)
|
13.14
|
13.22
|
13.30
|
13.38
|
13.46
|
|
Open Circuit Voltage- Voc (V)
|
54.80
|
54.95
|
55.10
|
55.25
|
55.40
|
|
Short Circuit Current- Isc (A)
|
13.90
|
13.97
|
14.04
|
14.11
|
14.18
|
|
Module Efficiency (%)
|
21.29
|
21.46
|
21.64
|
21.82
|
22.00
|
|
Power Output Tolerance (W)
|
0 ~ +5
|
|
STC
|
Irradiance 1000W/m², Cell temperature 25℃, Air Mass AM1.5
|
|
Operational Temperature
|
-40~+85℃
|
|
Maximum System Voltage
|
1500VDC (IEC)
|
|
Max Series Fuse Rating
|
25A
|
