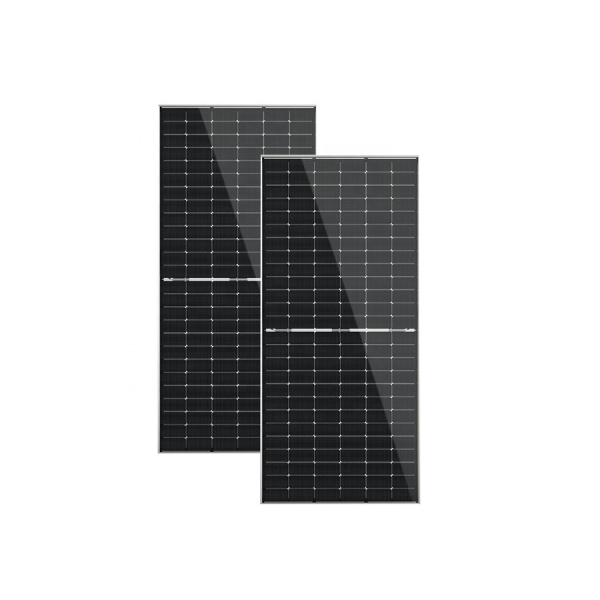

JKM590-610N-78HL4-BDV Bifacial
Tiger Neo N-type
78HL4-BDV
590-610 Watt
BIFACIAL MODULE WITH
DUAL GLASS
Model Number
JKM600N-78HL4-BDV
Type
PERC, Half Cell, N type
Panel Dimensions
2465*1134*35mm
Warranty
30 years
Cell Type
N-type Monocrystalline
No of Cells
156(2*78)
Weight
34.6kg
Front Glass
2.0mm,Anti-Reflection Coating, High Transmission, Tempered Glass
Frame
Anodized Aluminium Alloy
Junction Box
IP 68 Rated
Output cable
TUV1*4.0mm2, (+):400mm,(-):200mm or Customized Length

Electrical Data(STC)
Rated Power Watt- Pmax (W)
JKM590N-78HL4-BDV
JKM600N-78HL4-BDV
JKM605N-78HL4-BDV
JKM610N-78HL4-BDV
Maximum Power - Pmax (W)
590
600
605
610
Maximum Power Voltage-Vmp(V)
44.91
45.25
45.52
45.60
Maximum Power Current- Imp (A)
13.14
13.26
13.32
13.38
Open Circuit Voltage- Voc (V)
54.76
55.03
55.17
55.31
Short Circuit Current- Isc (A)
13.71
13.87
13.95
14.03
Module Efficiency (%)
21.11%
21.46%
21.64%
21.82%
Power Output Tolerance (W)
0 ~ +3℃
Operational Temperature
-40~+85℃
Maximum System Voltage
1500VDC
Max Series Fuse Rating
30A
Temperature coefficient of Pmax
-0.30%/℃
Temperature coefficient of Voc
-0.25%/℃
Temperature coefficient of Isc
0.046%/℃
Nominal Operating Cell Temperature
45±2℃
Refer. Bifacial Factor
80±5%
STC
Irradiance 800W/m², Ambient temperature 20℃,Wind speed 1m/s
